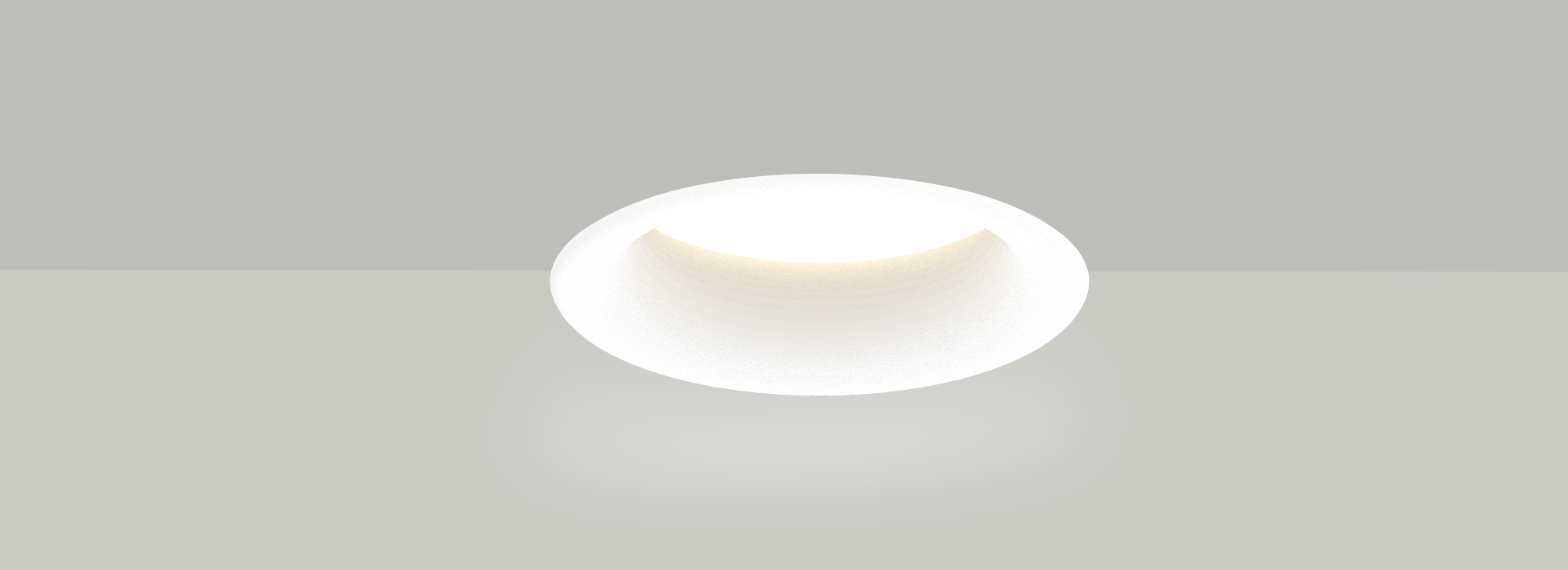

Halo | 22W

Product Reference

Environment Indoor

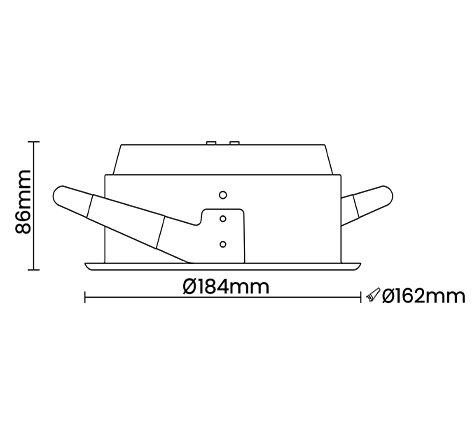

Installation Ceiling Recess

Construction & Materials

Housing Spun Aluminium

Primary Lens -

Primary Reflector -

Secondary Reflector -

Body Finish White,Black,Custom

Diffuser Premium high-transmission opal

Antiglare Baffle -

Thermal Management

Heat Sink Material Aluminium

Cooling Technique Passive Cooling

Optical System

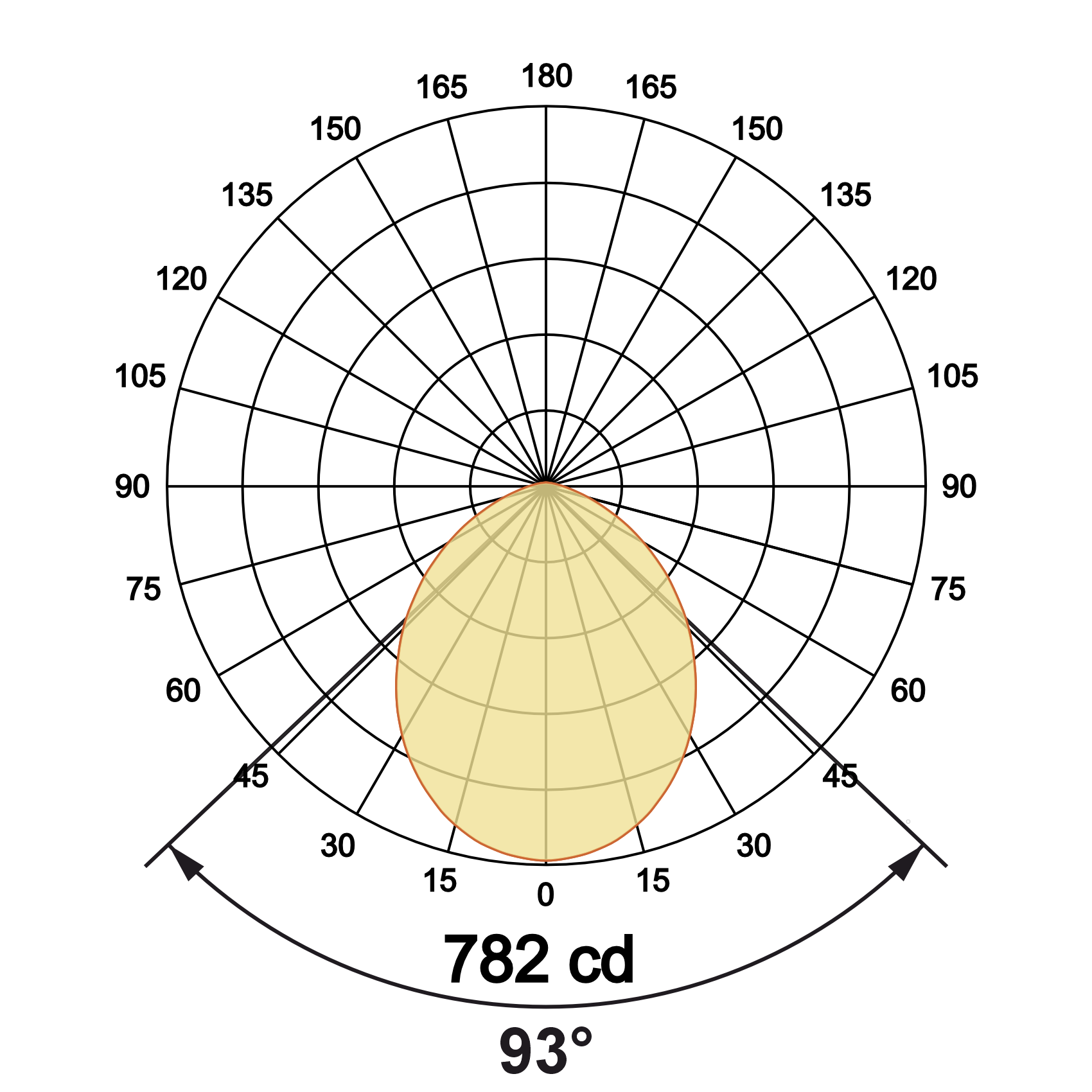

Beam Direction General Diffuse

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Remote

LED Power Watts 18.9W

System Power Watts 21.7W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid power LED array 23V-27Vdc/700mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,CASAMBI,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Halo 22W WW27K CRI80 94° SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Halo 22W 1584 73 2700K WW27K CRI80 94° White SWH Non Dimmable On/Off
1628 75 3000K WW30K CRI90 Black SBL Phase Dimmable PDIM
1714 79 4000K NW40K Custom CSM Dali Dimmable DDIM
1758 81 5700K CW57K Casambi CBTM
2700K-5700K TW
Halo 22W WW27K CRI80 94° SWH On/Off
