Go Pro 35 TT | 5W

Product Reference

Environment Indoor

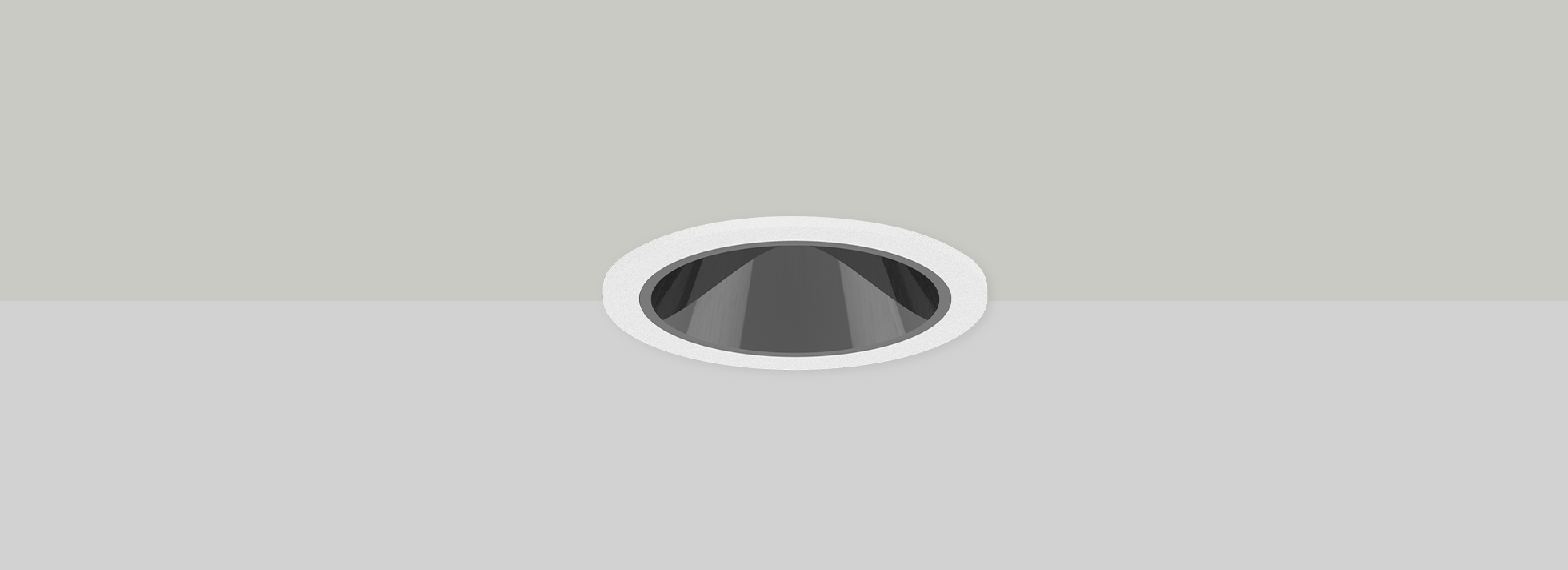

Installation Ceiling Recess

Construction & Materials

Housing Die Cast Aluminium

Primary Lens PMMA

Primary Reflector -

Secondary Reflector Anodised

Body Finish White,Black

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Remote

LED Power Watts 3.4W

System Power Watts 4.2W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.5

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted CREE COB LED 36Vdc/130mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,CASAMBI,Non Dimmable

Download Data Sheet

Back to Go Pro TT family
Optional

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Go Pro 35 TT 5W WW27K CRI80 24°(MD) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Go Pro 35 TT 5W 420 100 2700K WW27K CRI80 24°(MD) White SWH Non Dimmable On/Off
433 103 3000K WW30K CRI90 36°(WD) Black SBL Phase Dimmable PDIM
454 108 4000K NW40K 52°(VWD) Dali Dimmable DDIM
466 111 5700K CW57K Casambi CBTM
Warm to Dim W2D
Go Pro 35 TT 5W WW27K CRI80 24°(MD) SWH On/Off
