Product Reference
Environment Indoor
Installation Ceiling Recess
Construction & Materials
Housing Die Cast Aluminium
Primary Lens -
Primary Reflector PC metallised
Secondary Reflector Black Raster – ABS
Body Finish White,Black,Custom
Diffuser Premium high-transmission opal
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed Asymmetric
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 14.6W
System Power Watts 16.8W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI90
Led Type SMD high power
LED Fitted -
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable
.png)

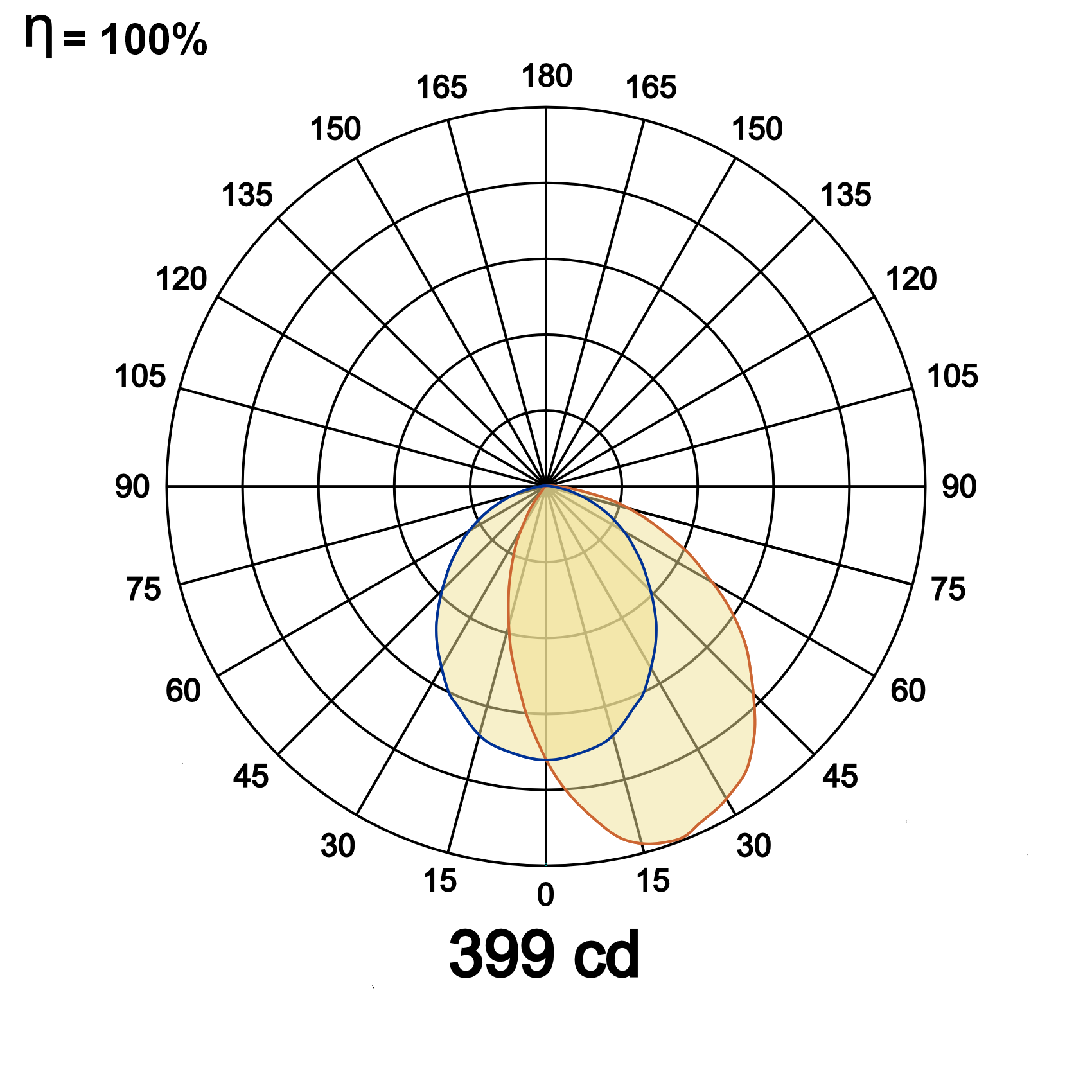

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Dark Knight R Wash | 17W | WW27K | CRI90 | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dark Knight R Wash | 17W | 941 | 56 | 2700K | WW27K | CRI90 | White | SWH | Non Dimmable | On/Off | |
| 974 | 58 | 3000K | WW30K | Black | SBL | Phase Dimmable | PDIM | ||||
| 1042 | 62 | 4000K | NW40K | Custom | CSM | Dali Dimmable | DDIM | ||||
| 1075 | 64 | 5700K | CW57K | Bluetooth Dimmable | BTTM | ||||||
| Casambi | CBTM | ||||||||||
| Dark Knight R Wash | 17W | WW27K | CRI90 | SWH | On/Off | ||||||
