Cyclop 90 | 66W

Product Reference

Environment Indoor

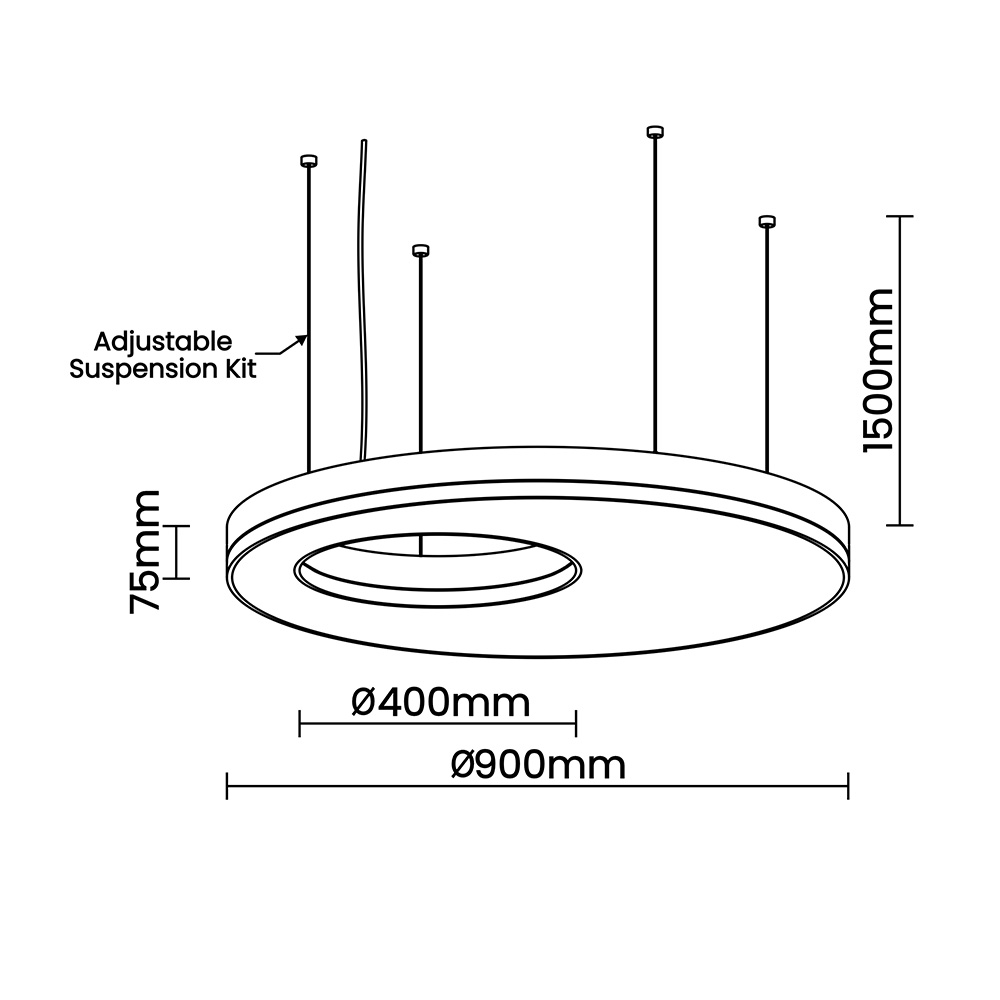

Installation Ceiling Suspended

Construction & Materials

Housing Extruded and Sheet Aluminium

Primary Lens -

Primary Reflector White Optics

Secondary Reflector -

Body Finish White,Black,Custom

Diffuser Premium high-transmission opal

Antiglare Baffle -

Thermal Management

Heat Sink Material Aluminium

Cooling Technique Passive Cooling

Optical System

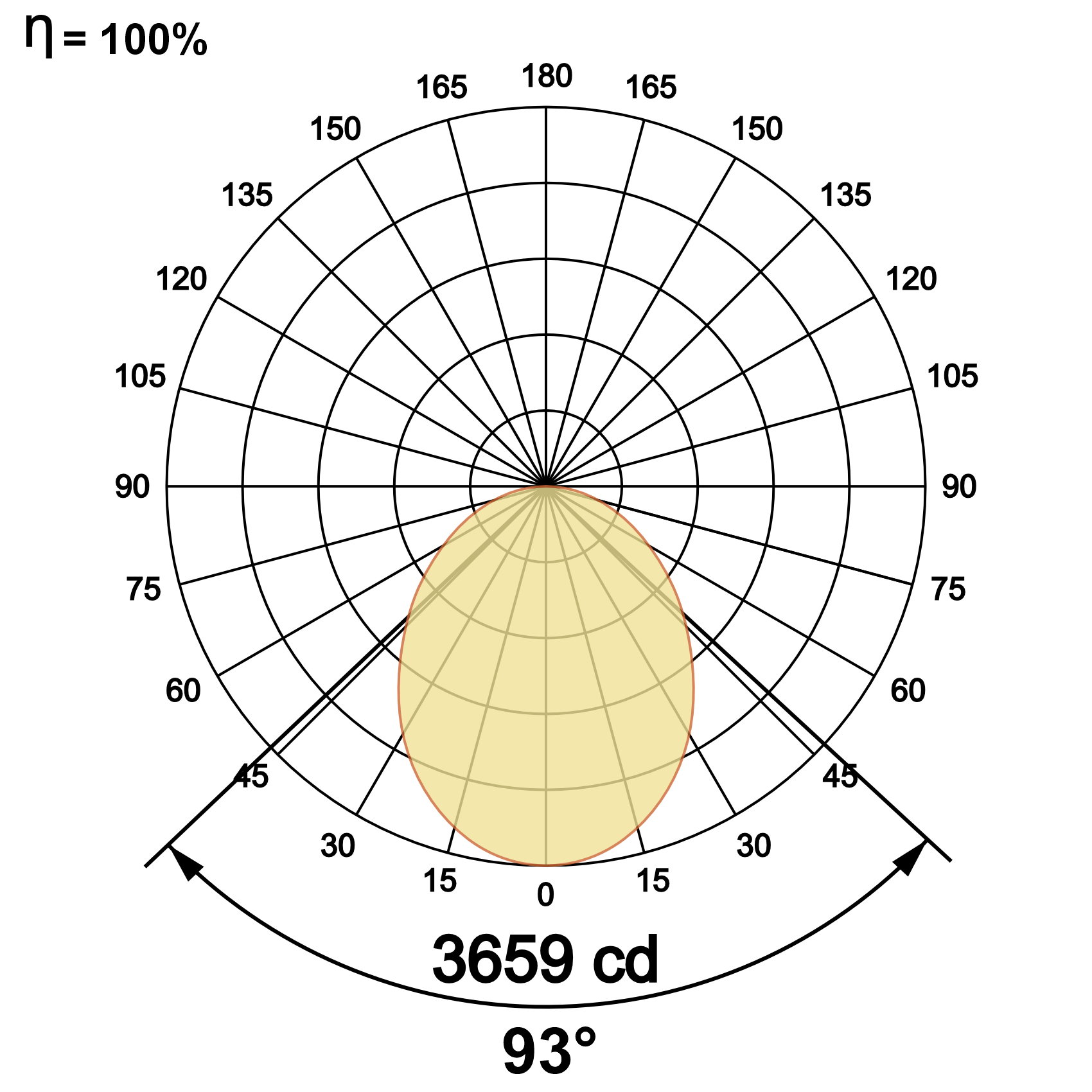

Beam Direction General Diffuse

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 57.1W

System Power Watts 65.6W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid power LED array 42V-48Vdc/1400mA


Standard Switchable On/Off

Optional DDIM,CASAMBI,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Cyclop 90 66W WW27K CRI80 93° SWH On/Off

Select one from each column with highlighted values to create the ordering code

Cyclop 90 66W 7872 120 2700K WW27K CRI80 93° White SWH Non Dimmable On/Off
8134 124 3000K WW30K CRI90 Black SBL Dali Dimmable DDIM
8594 131 4000K NW40K Custom CSM Casambi CBTM
8856 135 5700K CW57K
Cyclop 90 66W WW27K CRI80 93° SWH On/Off
