Product Reference
Environment Indoor
Installation Ceiling Recess
Construction & Materials
Housing Die Cast Aluminium
Primary Lens -
Primary Reflector White Optics
Secondary Reflector -
Body Finish White
Diffuser Premium high-transmission opal
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction General Diffuse
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 8.3W
System Power Watts 9.5W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Samsung Mid power LED array 32V-38Vdc/250mA
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

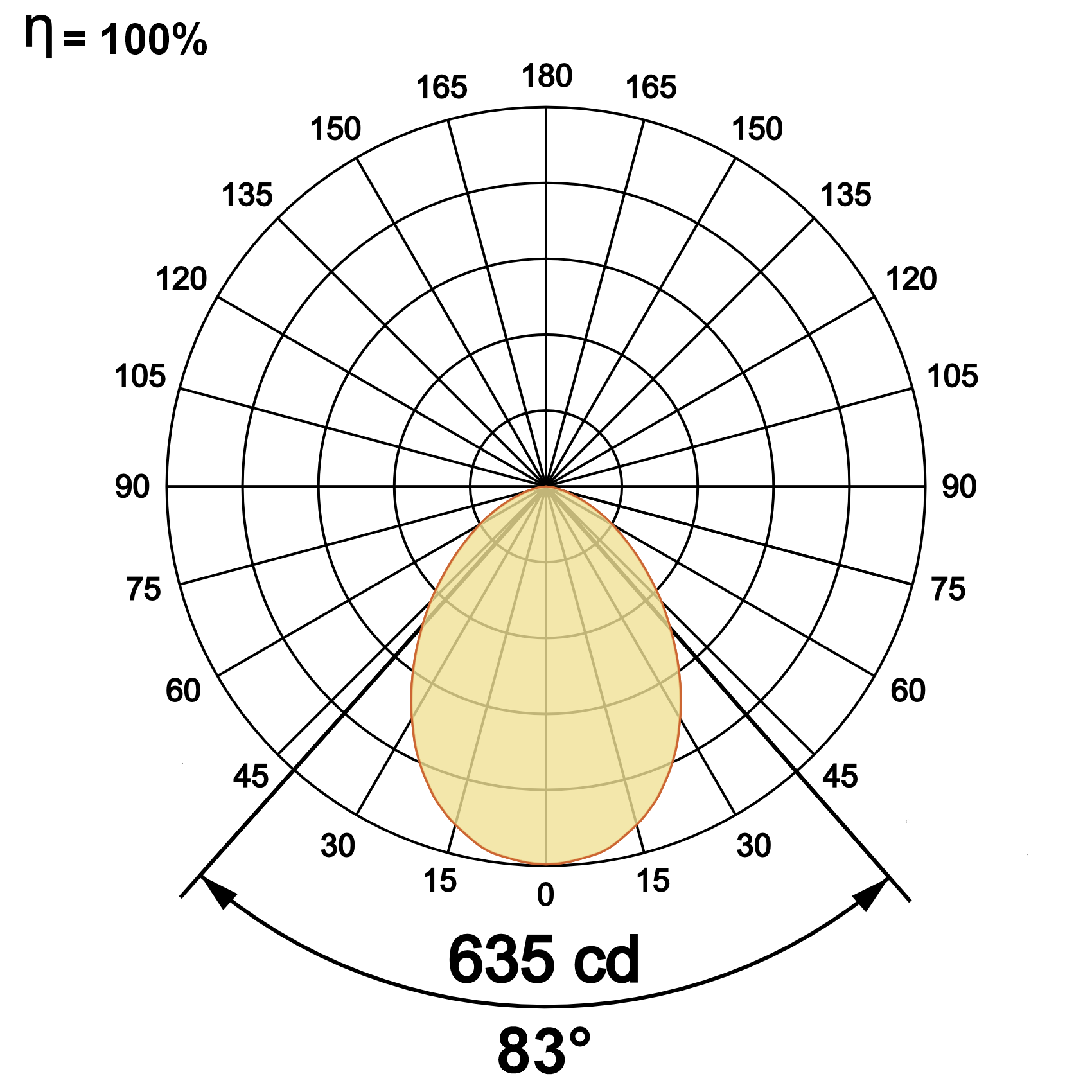

Light Distribution
Ordering Details
Code Example:
Name | Watt | CCT | CRI | Angle | Finish | Control |
---|---|---|---|---|---|---|
AllRounder | 10W | WW27K | CRI80 | 83° | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
---|---|---|---|---|---|---|---|---|---|---|---|
AllRounder | 10W | 1112 | 117 | 2700K | WW27K | CRI80 | 83° | White | SWH | Non Dimmable | On/Off |
1150 | 121 | 3000K | WW30K | CRI90 | Phase Dimmable | PDIM | |||||
1216 | 128 | 4000K | NW40K | Dali Dimmable | DDIM | ||||||
1264 | 133 | 5700K | CW57K | Bluetooth Dimmable | BTTM | ||||||
2700K-5700K | TW | Casambi | CBTM | ||||||||
AllRounder | 10W | WW27K | CRI80 | 83° | SWH | On/Off |
