Product Reference
Environment Indoor
Installation Track Mounted
Construction & Materials
Housing Aluminium
Primary Lens PMMA
Primary Reflector -
Secondary Reflector -
Body Finish Black
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Adjustable
Tilt Yes
Swivel Yes
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 12.2W
System Power Watts 14.0W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted Cree COB LED 36Vdc/350mA
Controls
Standard Switchable On/Off
Optional Non Dimmable

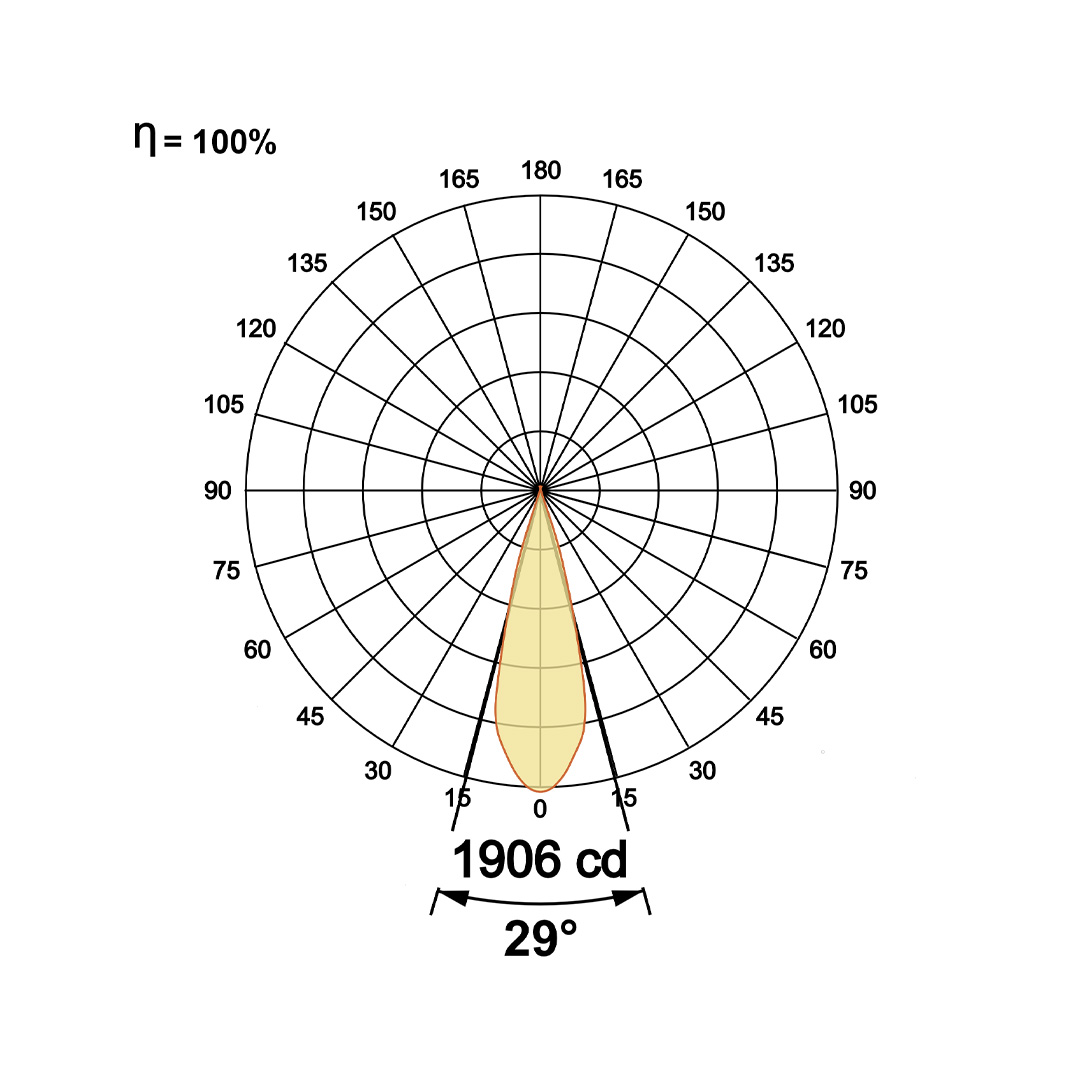

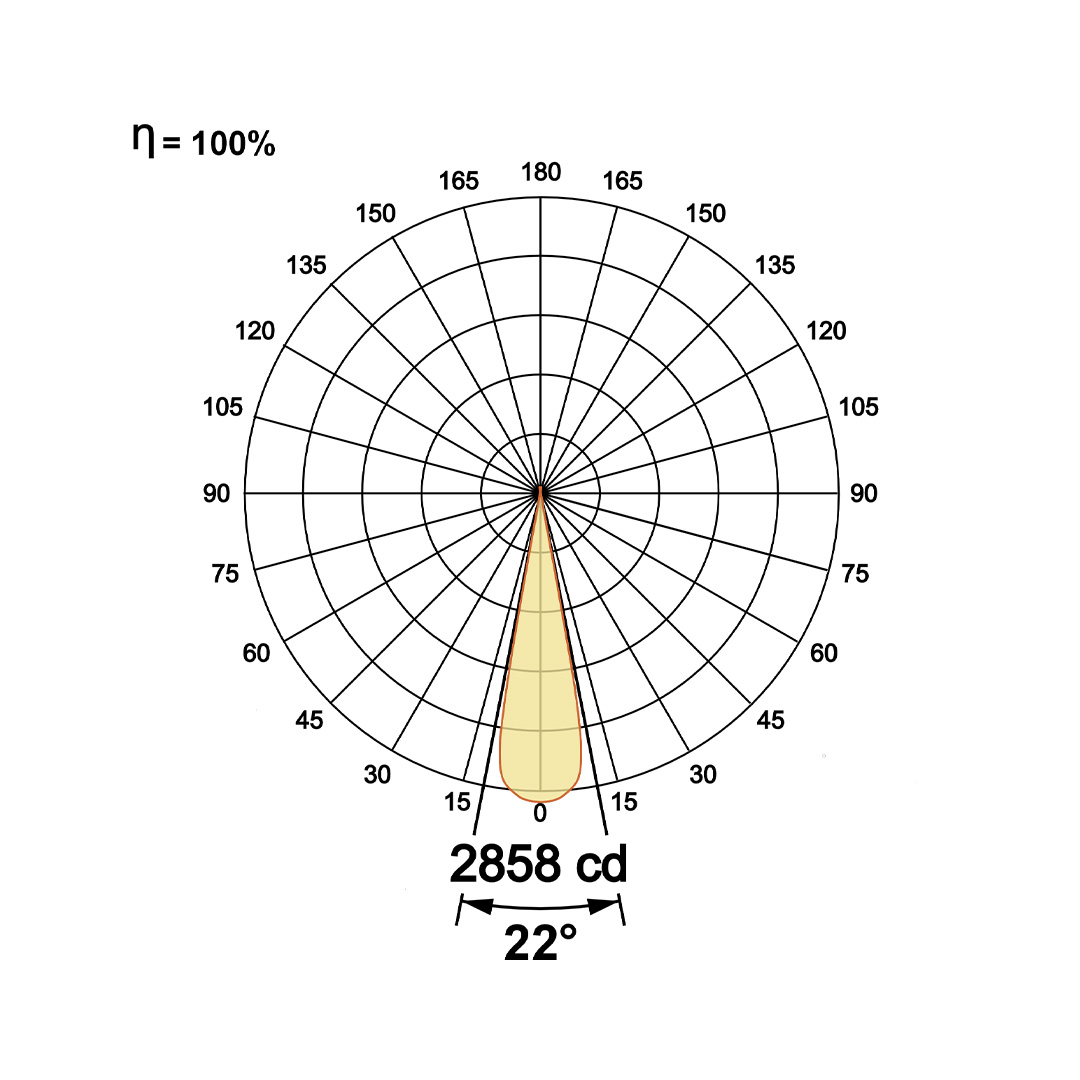

Light Distribution
IES Files
Ordering Details
Code Example:
Select one from each column with highlighted values to create the ordering code
