Product Reference
Environment Indoor
Installation Track Mounted
Construction & Materials
Housing Aluminium
Primary Lens PMMA
Primary Reflector -
Secondary Reflector -
Body Finish Black
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Adjustable
Tilt Yes
Swivel Yes
Electrical System
Driven with Constant Voltage Driver
Input Voltage/Hz 48V
Control Gear Included
Mounting Remote
LED Power Watts 7.2W
System Power Watts -
Operating Voltage Vin 48V
Power Factor p.f. -
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted Cree COB LED 36Vdc/200mA
Controls
Standard Switchable On/Off
Optional DDIM,Non Dimmable

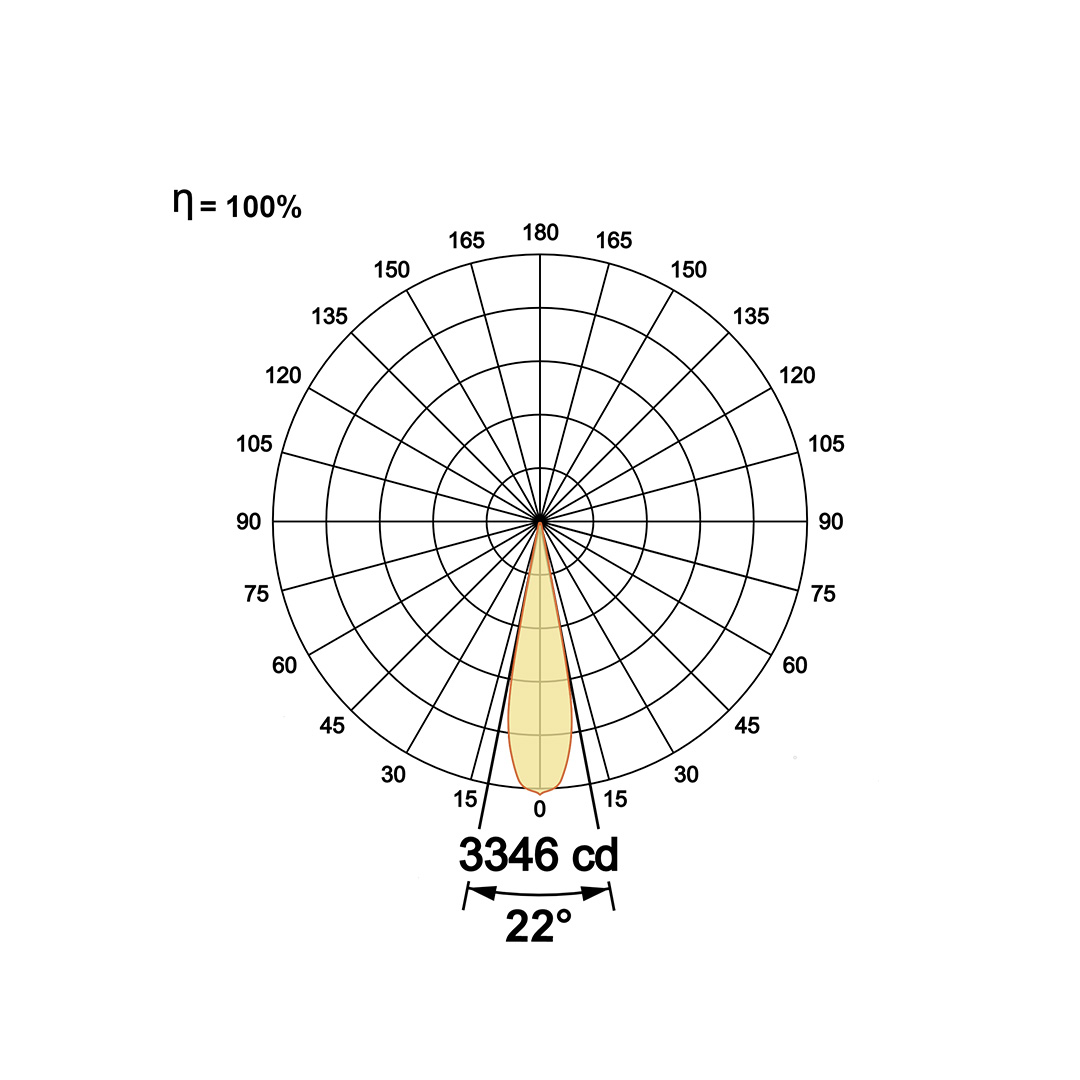

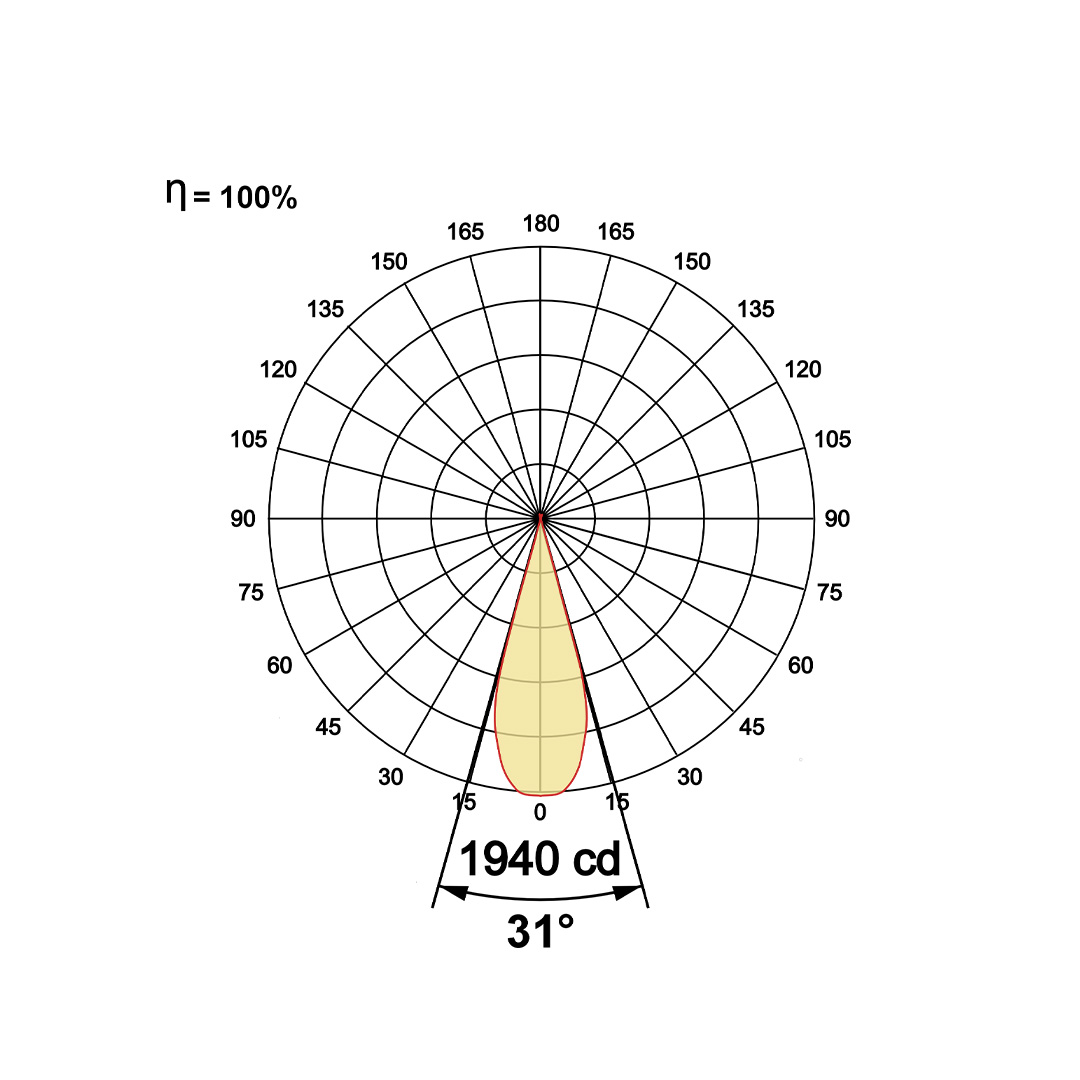

Light Distribution
IES Files
Ordering Details
Code Example:
Select one from each column with highlighted values to create the ordering code
