Product Reference
Environment Outdoor
Installation Wall Surface,Wall Surface
Construction & Materials
Housing Die Cast Aluminium
Primary Lens Tempered Glass Visor
Primary Reflector White Polymer
Secondary Reflector Silver Painted Polymer
Body Finish White,Black,Custom
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 6.3W
System Power Watts 7.2W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted CREE COB LED 36Vdc/190mA
Controls
Standard Switchable On/Off
Optional DDIM,Non Dimmable

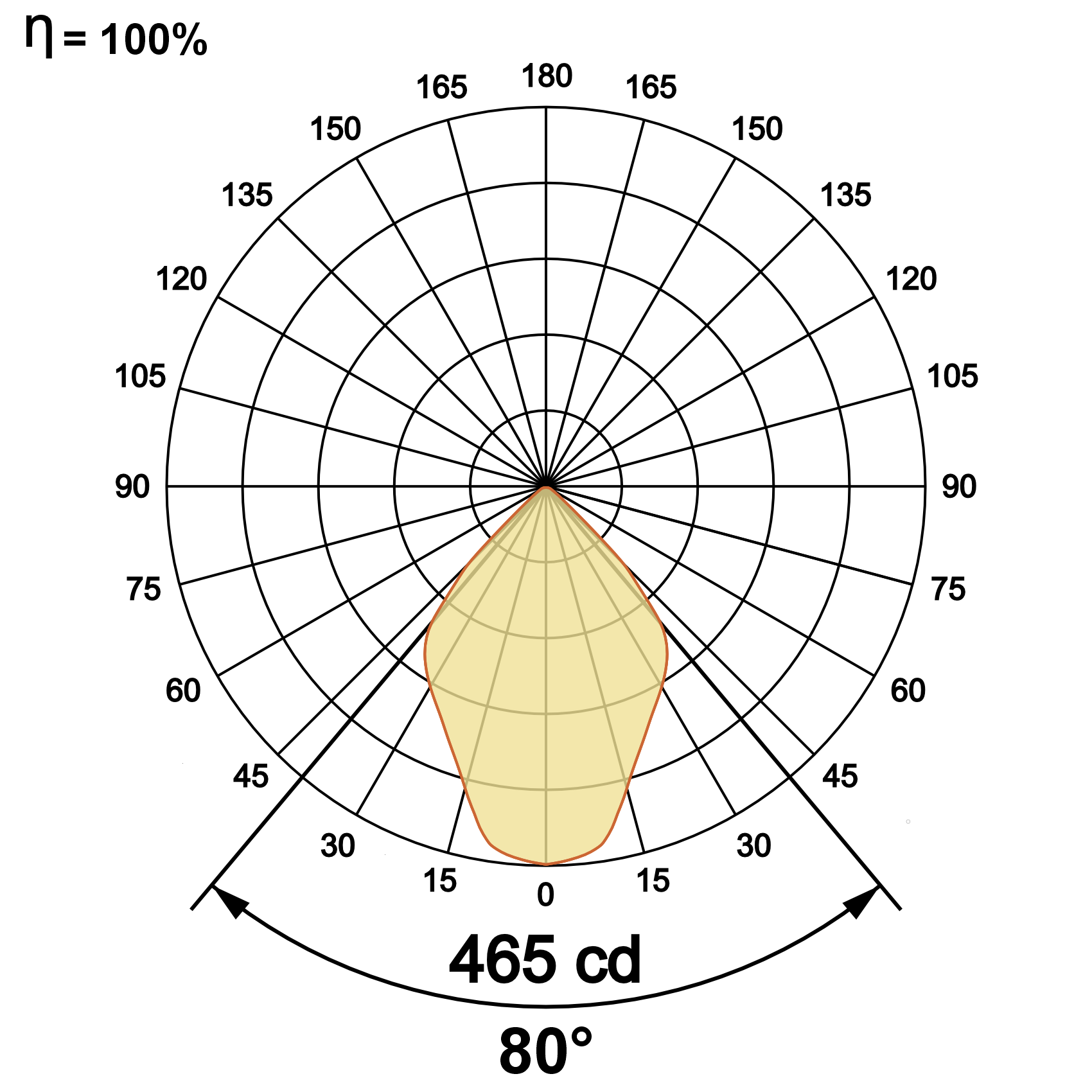

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Wallop Unidirectional | 8W | WW27K | CRI80 | 80° | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wallop Unidirectional | 8W | 547 | 76 | 2700K | WW27K | CRI80 | 80° | White | SWH | Non Dimmable | On/Off |
| 598 | 83 | 3000K | WW30K | CRI90 | Black | SBL | Dali Dimmable | DDIM | |||
| 641 | 89 | 4000K | NW40K | Custom | CSM | ||||||
| 655 | 91 | 5700K | CW57K | ||||||||
| Warm to Dim | W2D | ||||||||||
| Wallop Unidirectional | 8W | WW27K | CRI80 | 80° | SWH | On/Off | |||||
