ZuG Dark P 224 | 64W

Product Reference

Environment Indoor

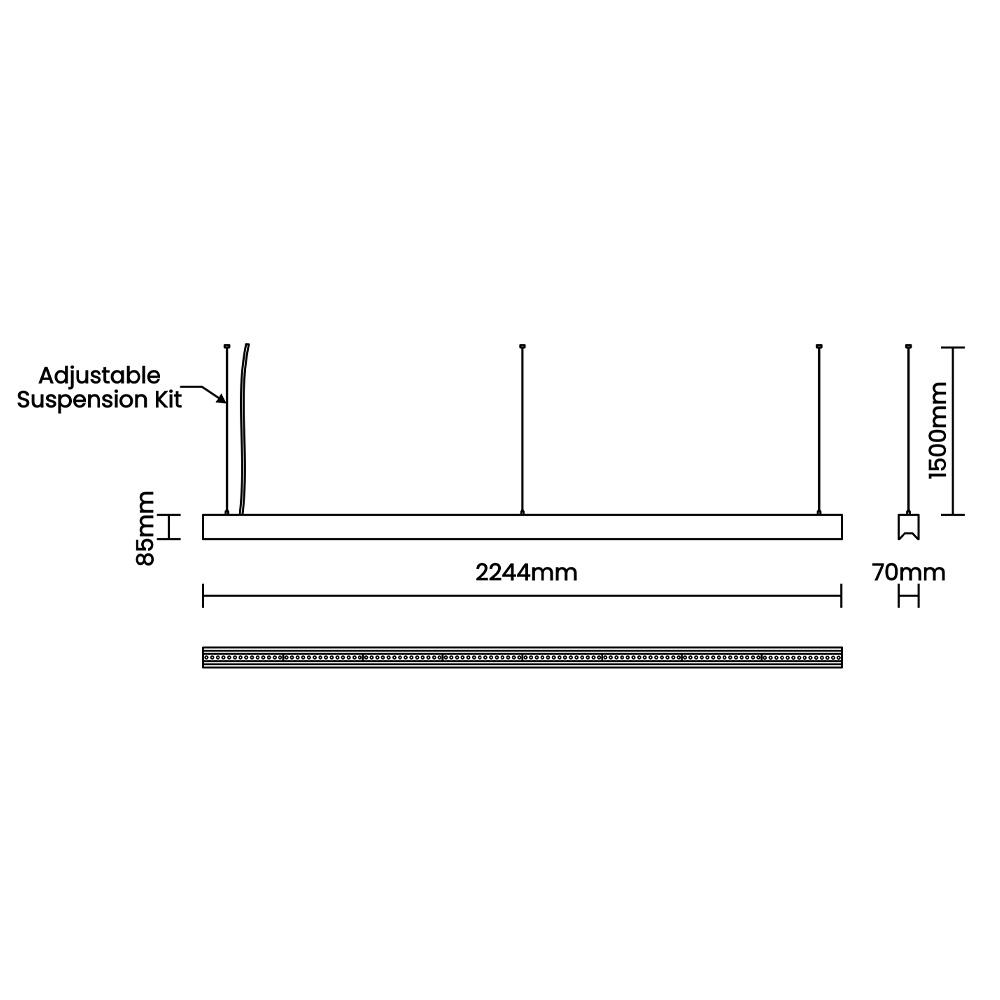

Installation Ceiling Suspended

Construction & Materials

Housing Aluminium Extrusion

Primary Lens PMMA

Primary Reflector -

Secondary Reflector PC Black Cover

Body Finish White,Black

Diffuser -

Antiglare Baffle Black,White,Custom

Thermal Management

Heat Sink Material Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 54.6W

System Power Watts 62.8W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD high power

LED Fitted Cree 3030 LED array 39V-42Vdc/1400mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
ZuG Dark P 224 64W WW27K CRI80 28°(MD) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
ZuG Dark P 224 64W 6782 108 2700K WW27K CRI80 28°(MD) White SWH Non Dimmable On/Off

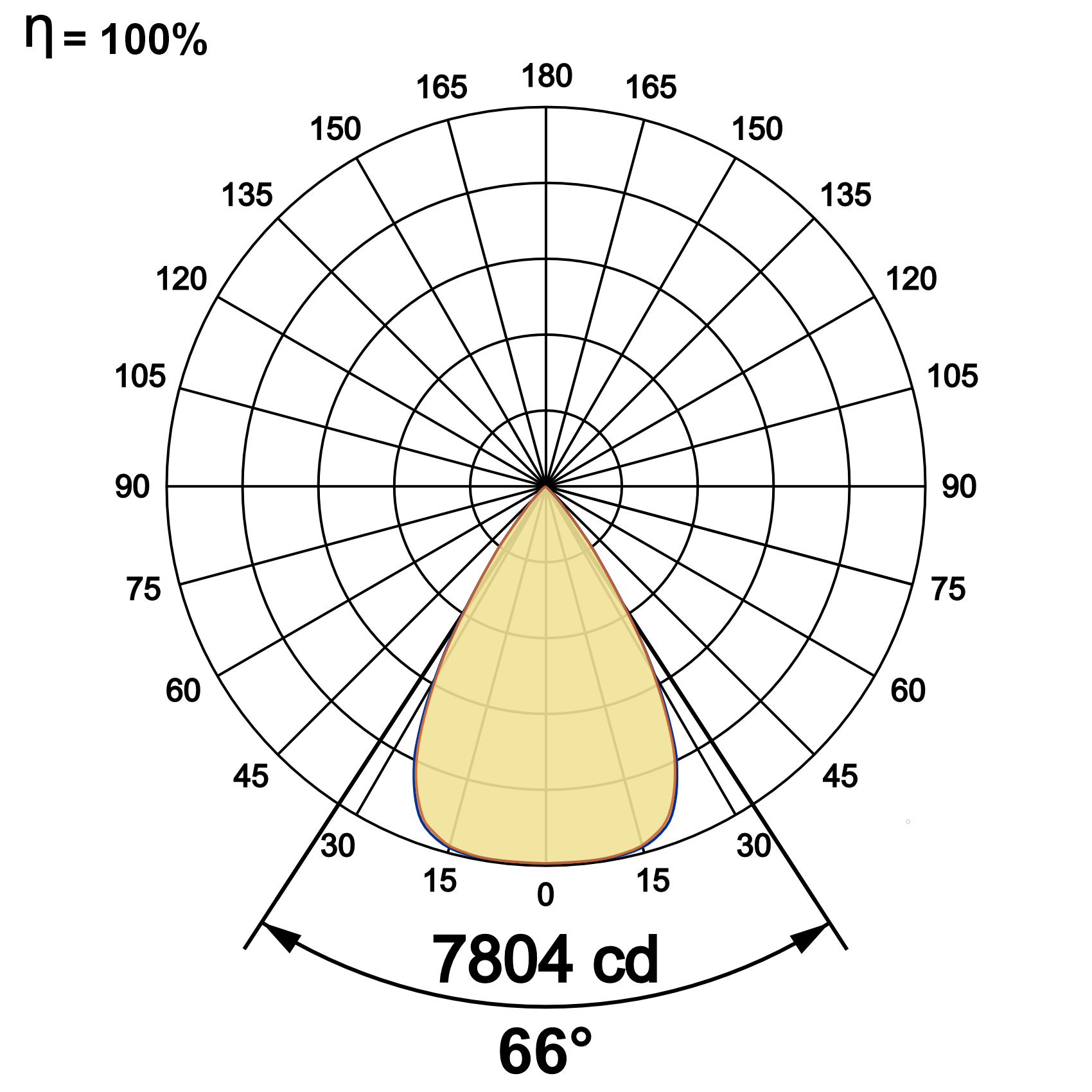

6908 110 3000K WW30K CRI90 66°(VWD) Black SBL Phase Dimmable PDIM
7222 115 4000K NW40K Dali Dimmable DDIM
7410 118 5700K CW57K Bluetooth Dimmable BTTM
Casambi CBTM
ZuG Dark P 224 64W WW27K CRI80 28°(MD) SWH On/Off
