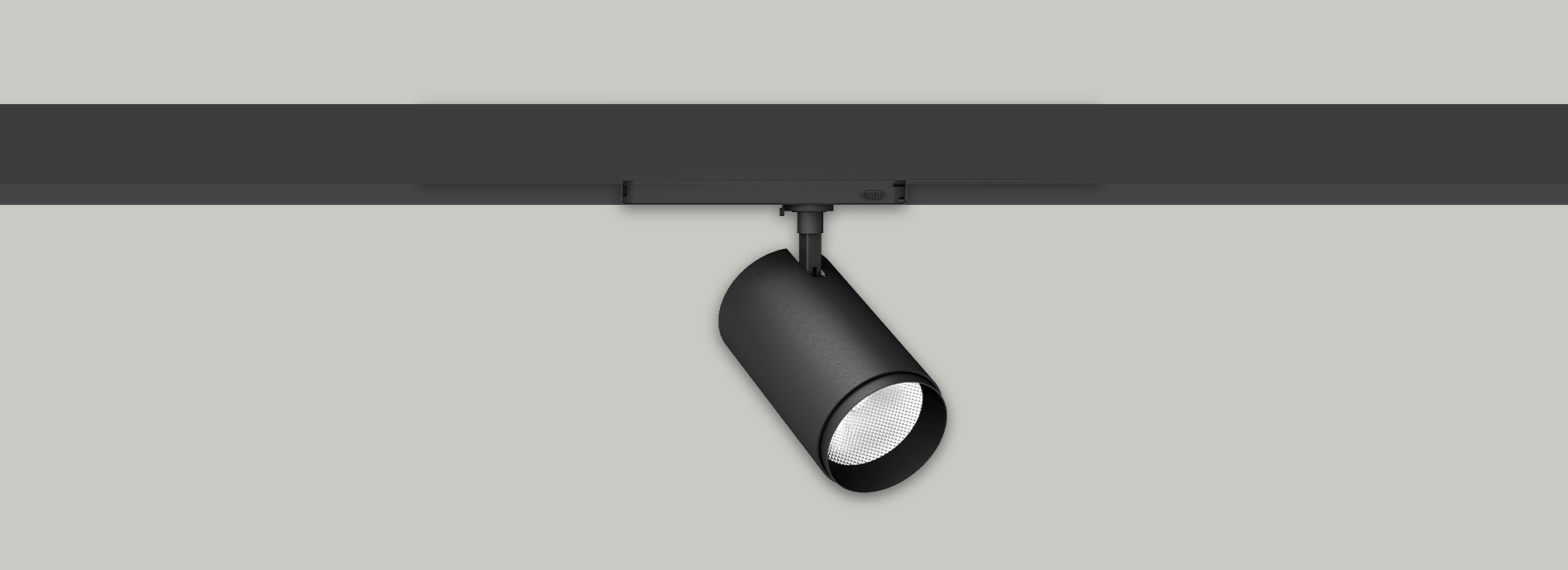

Spotboy Pro ITA 75 | 20W

Product Reference

Environment Indoor

Installation Track Mounted

Construction & Materials

Housing Aluminium

Primary Lens PMMA

Primary Reflector -

Secondary Reflector -

Body Finish White,Black

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Adjustable

Tilt Yes

Swivel Yes

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 17.5W

System Power Watts 20.1W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted Cree COB LED 33V-36Vdc/500mA

Controls

Standard Switchable On/Off

Optional Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Spotboy Pro ITA 75 20W WW27K CRI80 20°(SS) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Spotboy Pro ITA 75 20W 1849 92 2700K WW27K CRI80 20°(SS) White SWH Non Dimmable On/Off

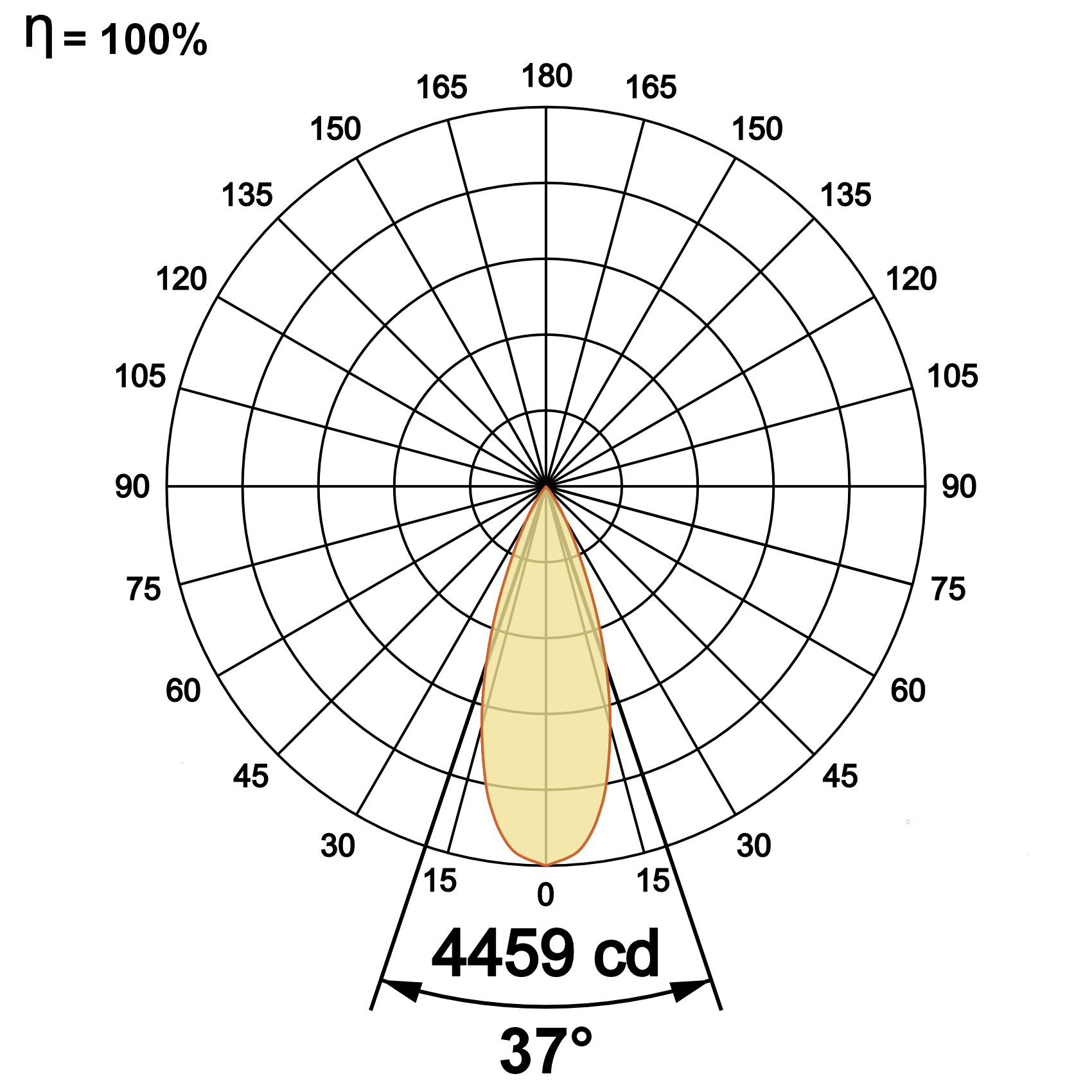

1910 95 3000K WW30K CRI90 37°(MD) Black SBL

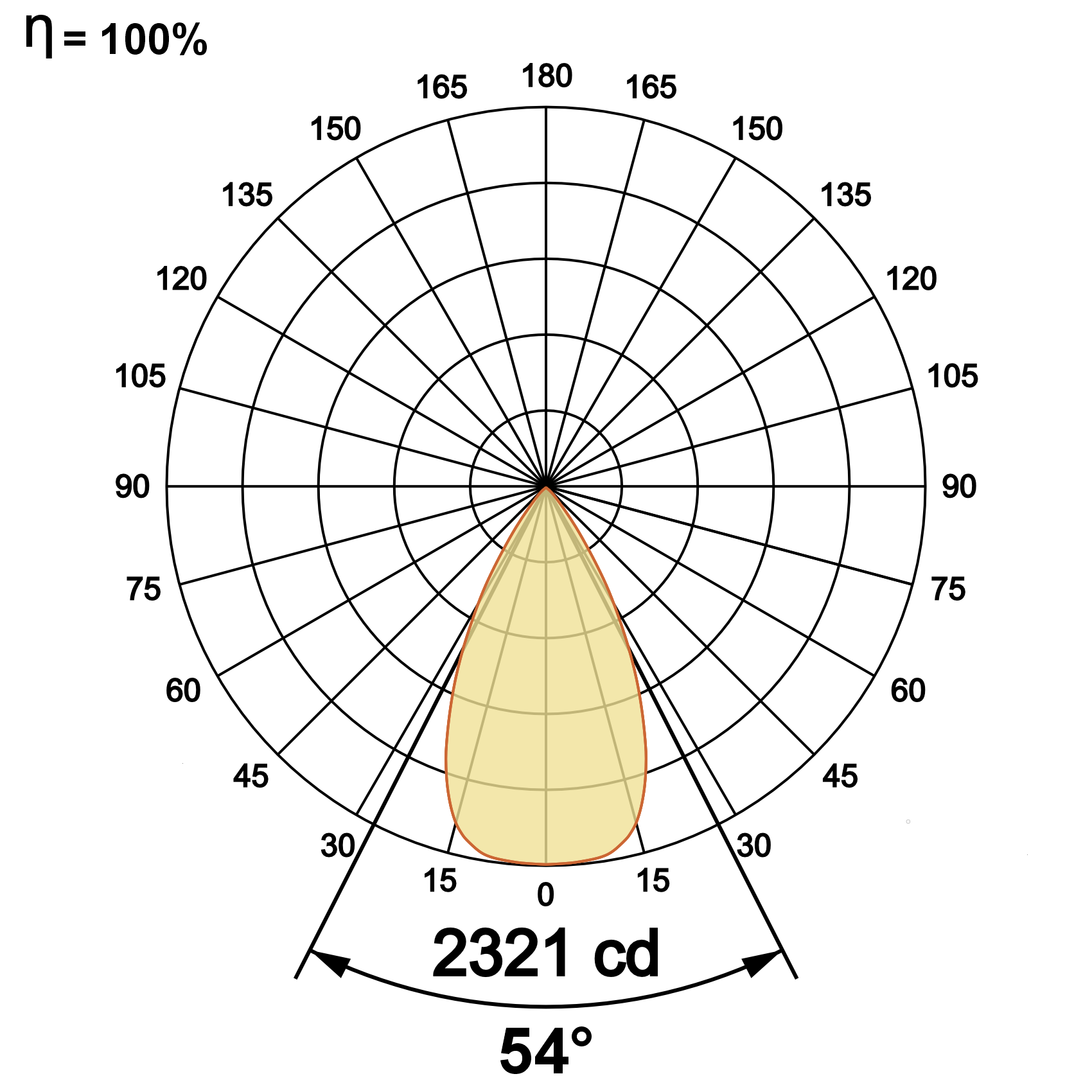

2010 100 4000K NW40K 54°(WD)
2050 102 5700K CW57K
Spotboy Pro ITA 75 20W WW27K CRI80 20°(SS) SWH On/Off
