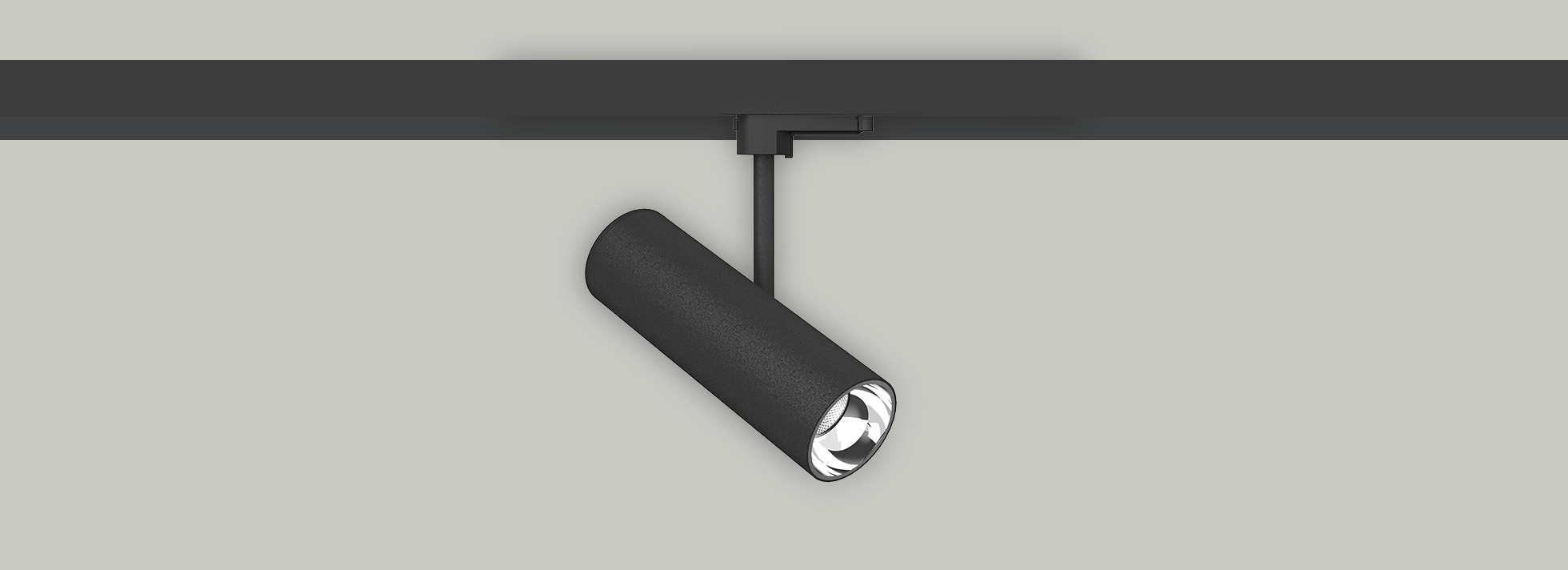

Ovo Carbon TA | 15W

Product Reference

Environment Indoor

Installation Track Mounted

Construction & Materials

Housing Aluminium

Primary Lens PMMA

Primary Reflector PC metallised

Secondary Reflector -

Body Finish White,Black

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Adjustable

Tilt Yes

Swivel Yes

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 12.8W

System Power Watts 14.7W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted CREE COB LED 36Vdc/700mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Ovo Carbon TA 15W WW27K CRI80 22°(SS) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Ovo Carbon TA 15W 1312 89 2700K WW27K CRI80 22°(SS) White SWH Non Dimmable On/Off
1352 92 3000K WW30K CRI90 29°(MD) Black SBL Phase Dimmable PDIM
1447 98 4000K NW40K 51°(WD) Dali Dimmable DDIM
1474 100 5700K CW57K
Warm to Dim W2D
Ovo Carbon TA 15W WW27K CRI80 22°(SS) SWH On/Off
