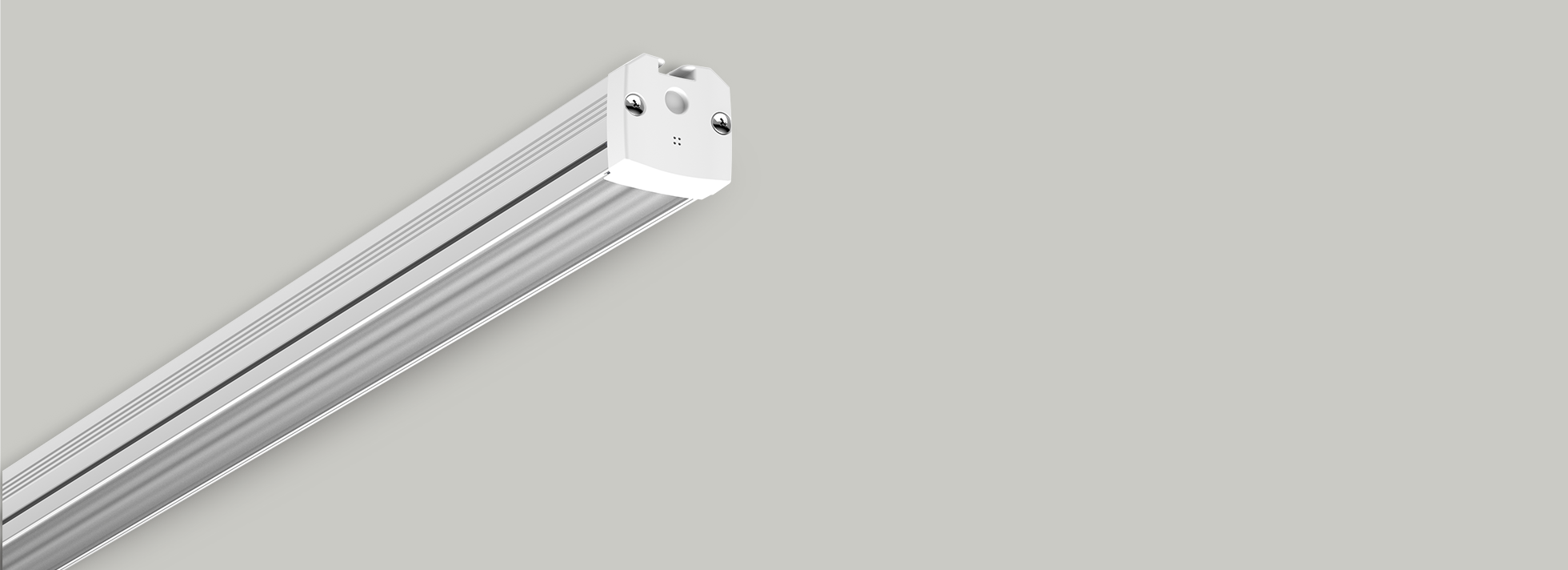

Outline Wallgrazer 120 | 40W

Product Reference

Environment Outdoor

Installation Ceiling Surface

Construction & Materials

Housing Extruded Aluminium

Primary Lens PMMA

Primary Reflector -

Secondary Reflector -

Body Finish Anodised Aluminium

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Aluminium

Cooling Technique Passive Cooling

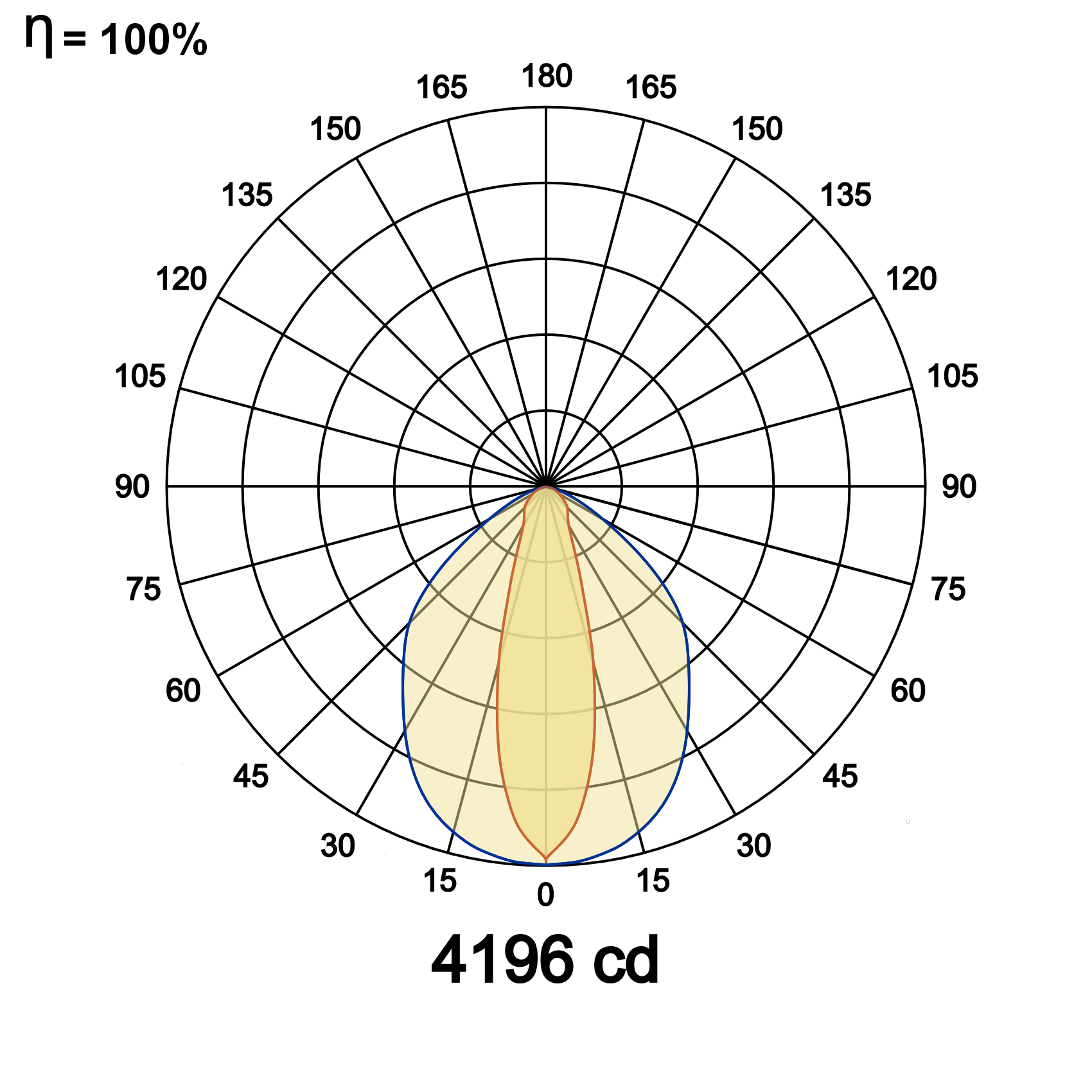

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Remote

LED Power Watts 34.1W

System Power Watts 39.2W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. >0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid power LED array 34-36Vdc/1000mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Outline Wallgrazer 120 40W WW27K CRI80 91°x 30° AL On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Outline Wallgrazer 120 40W 4077 104 2700K WW27K CRI80 91°x 30° Anodised Aluminium AL Non Dimmable On/Off
4194 107 3000K WW30K CRI90 Phase Dimmable PDIM
4390 112 4000K NW40K Dali Dimmable DDIM
4469 114 5700K CW57K Bluetooth Dimmable BTTM
2700K-5700K TW Casambi CBTM
Outline Wallgrazer 120 40W WW27K CRI80 91°x 30° AL On/Off
