Baylight FL | 190W

Product Reference

Environment Outdoor

Installation Ceiling Surface,Floor Surface

Construction & Materials

Housing Die Cast Aluminium

Primary Lens PMMA

Primary Reflector -

Secondary Reflector -

Body Finish White,Black,Grey

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Adjustable

Tilt Yes

Swivel Yes

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 165.6W

System Power Watts 190.4W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid power LED array 40V-45Vdc/4000mA

Controls

Standard Switchable On/Off

Optional Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control

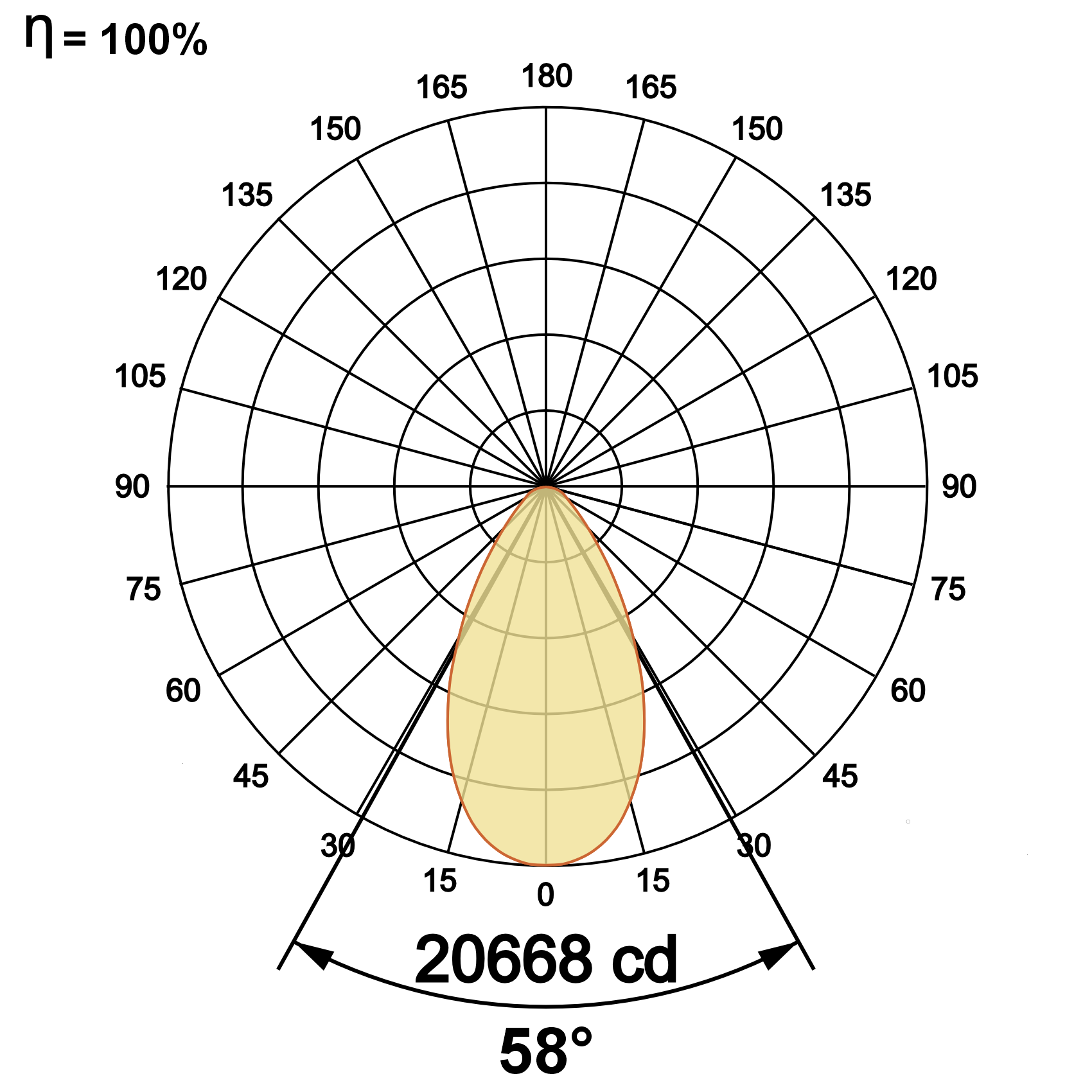

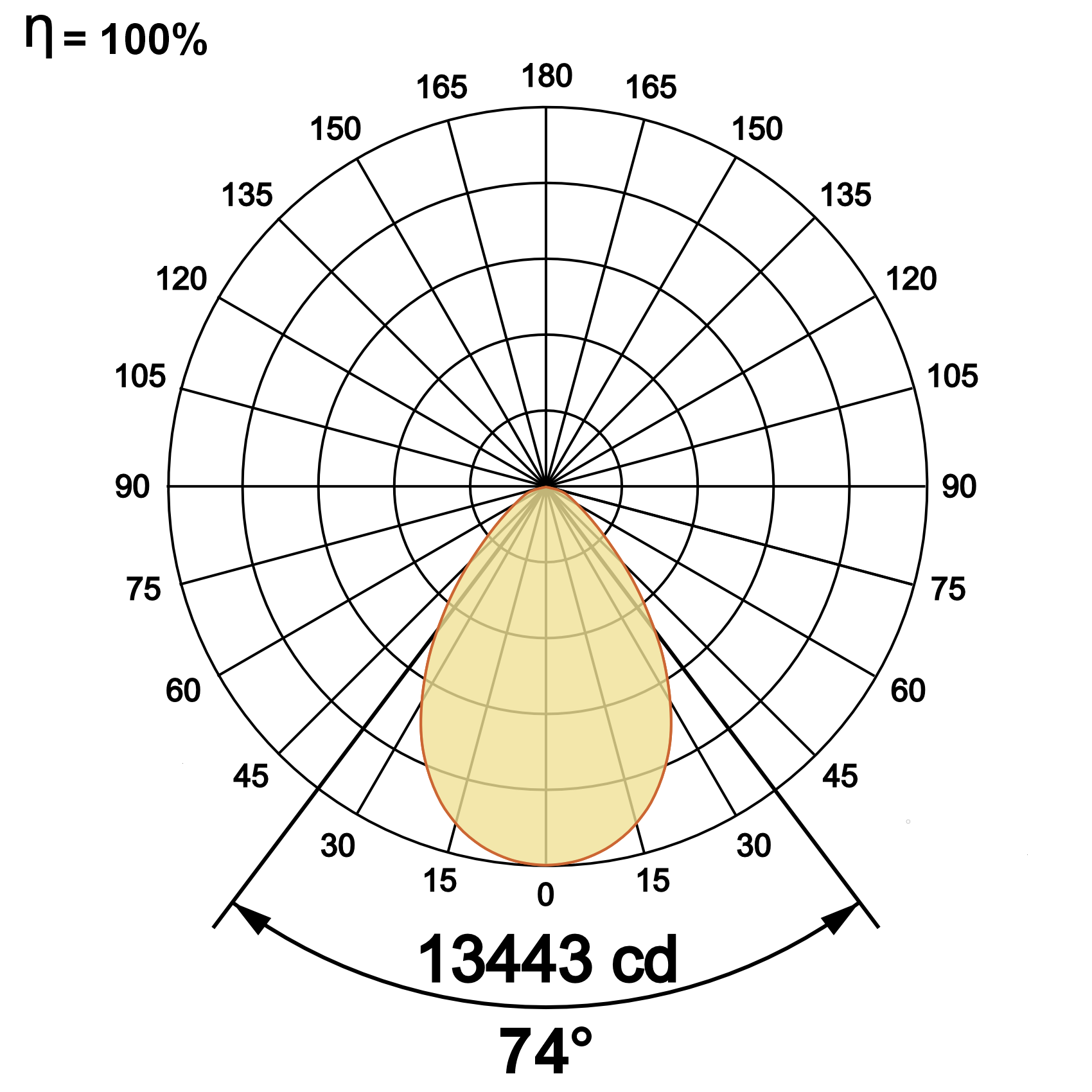

Baylight FL 190W WW27K CRI80 58°(MD)74°(WD) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Baylight FL 190W 21134 111 2700K WW27K CRI80 58°(MD)74°(WD) White SWH Non Dimmable On/Off
21706 114 3000K WW30K CRI90 Black SBL
23038 121 4000K NW40K Grey GGT
23610 124 5700K CW57K
Baylight FL 190W WW27K CRI80 58°(MD)74°(WD) SWH On/Off
