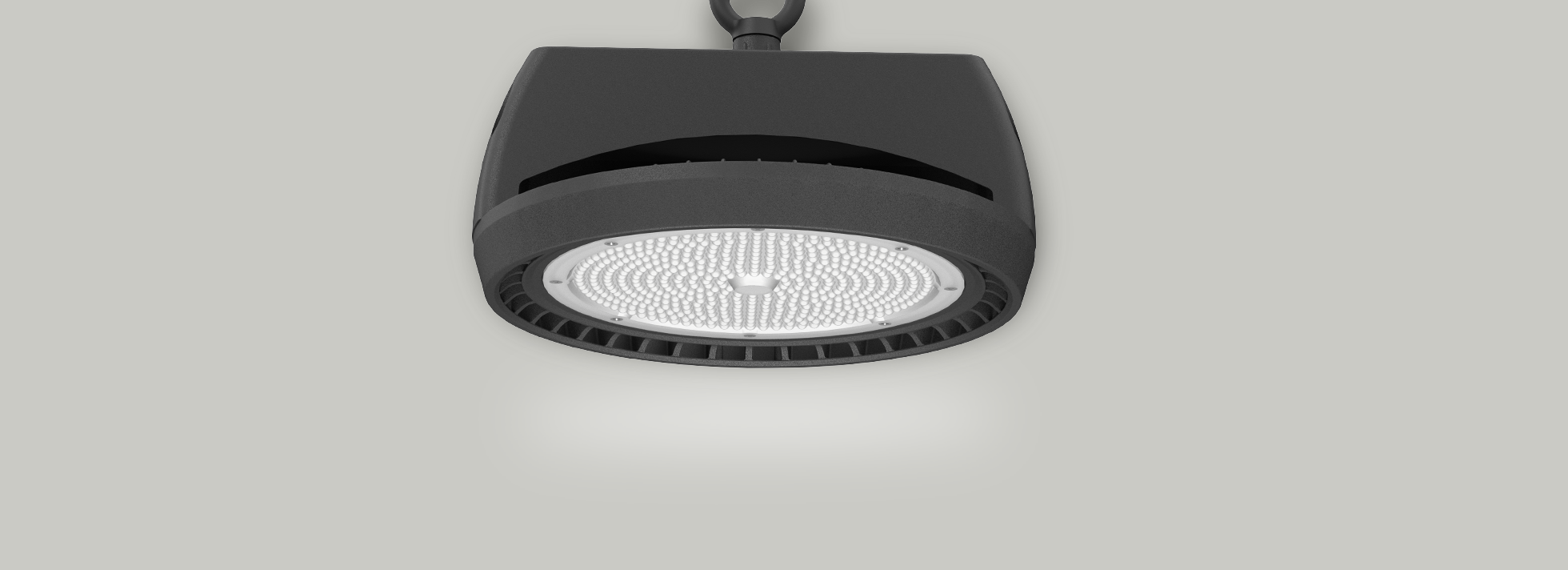

Baylight | 102W

Product Reference

Environment Indoor

Installation Ceiling Surface,Wall Surface,Wall Surface

Construction & Materials

Housing Die Cast Aluminium

Primary Lens PMMA

Primary Reflector -

Secondary Reflector -

Body Finish White,Black,Grey

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique -

Optical System

Beam Direction Adjustable

Tilt Yes

Swivel Yes

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 89.0W

System Power Watts 102.3W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid power LED array 40V-45Vdc/2300mA

Controls

Standard Switchable On/Off

Optional Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Baylight 102W WW27K CRI80 56°(MD) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Baylight 102W 11662 114 2700K WW27K CRI80 56°(MD) White SWH Non Dimmable On/Off
12071 118 3000K WW30K CRI90 73°(WD) Black SBL
12788 125 4000K NW40K Grey GGT
13197 129 5700K CW57K
Baylight 102W WW27K CRI80 56°(MD) SWH On/Off
