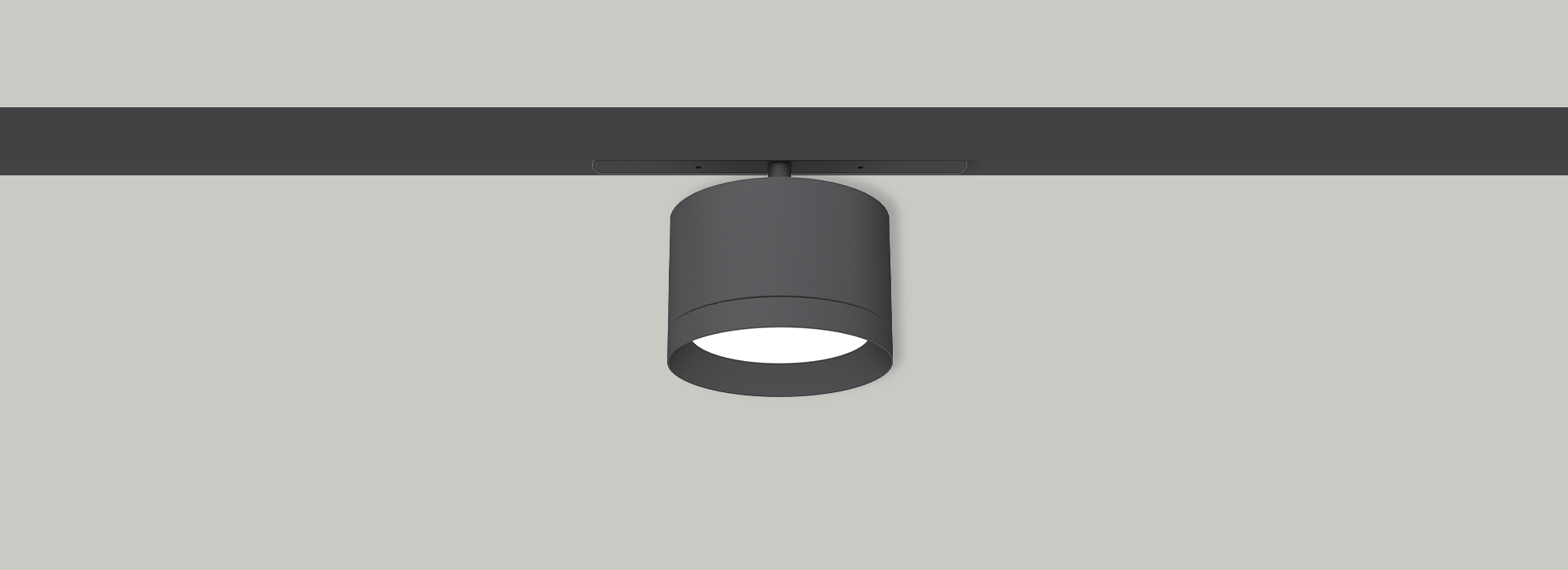

Barrel S 48V | 12.5W

Product Reference

Environment Indoor

Installation Track Mounted

Construction & Materials

Housing Aluminium

Primary Lens -

Primary Reflector -

Secondary Reflector -

Body Finish White,Black

Diffuser Premium high-transmission opal

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Voltage Driver

Input Voltage/Hz 48V

Control Gear Included

Mounting Remote

LED Power Watts 12.5W

System Power Watts -

Operating Voltage Vin 48V

Power Factor p.f. -

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid power LED array 33V-36Vdc/350mA

Controls

Standard Switchable On/Off

Optional DDIM,BTTM,CASAMBI,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Barrel S 48V 12.5W WW27K CRI80 84° SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Barrel S 48V 12.5W 1313 105 2700K WW27K CRI80 84° White SWH Non Dimmable On/Off
1350 108 3000K WW30K CRI90 Black SBL Dali Dimmable DDIM
1413 113 4000K NW40K Bluetooth Dimmable BTTM
1450 116 5700K CW57K Casambi CBTM
2700K-5700K TW
Barrel S 48V 12.5W WW27K CRI80 84° SWH On/Off
